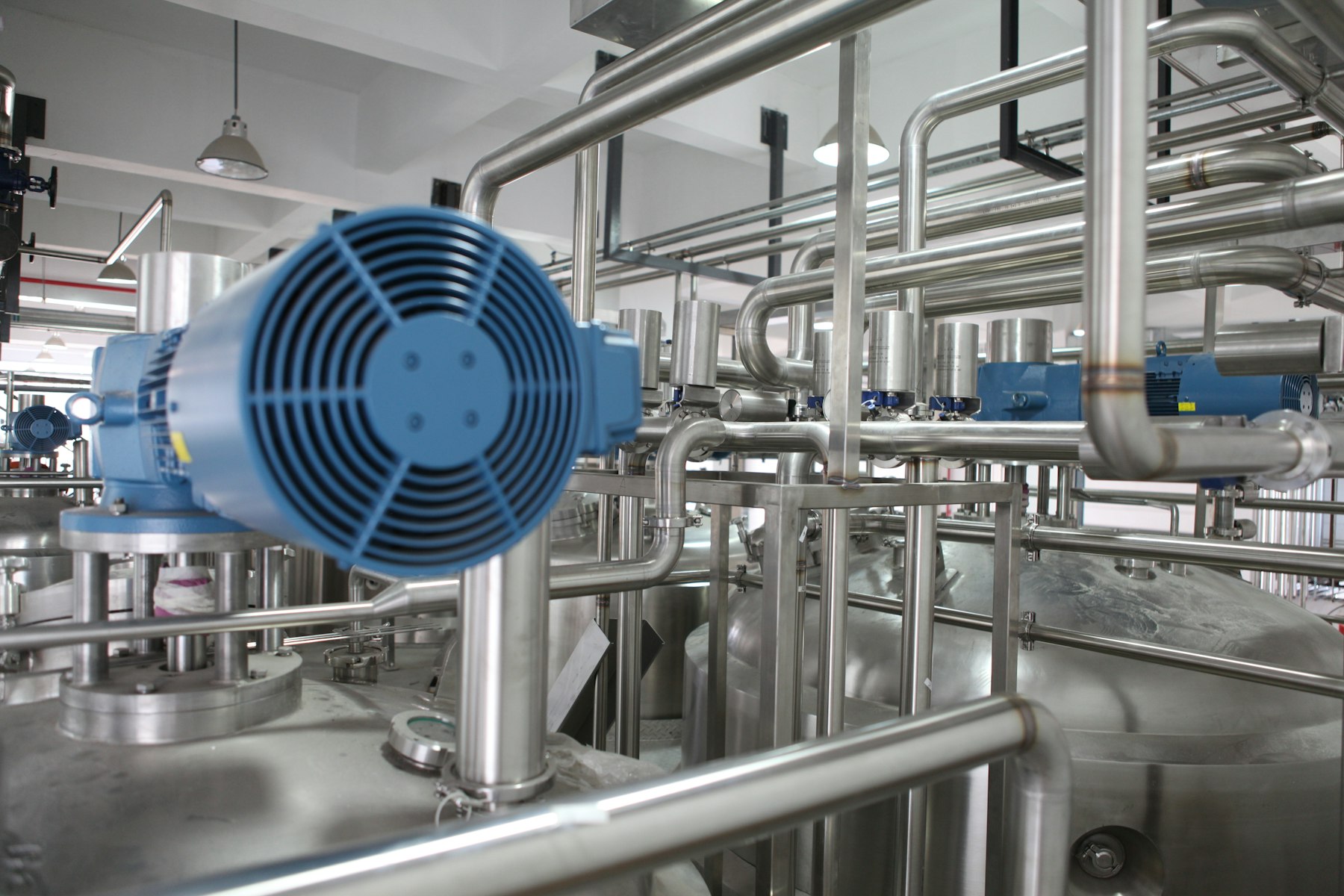

Industrial water treatment facility — factory floor placeholder

High-Performance
Membrane Bioreactor
for Modern Wastewater

Engineering-grade hollow fiber and flat sheet MBR membranes — designed for EPC contractors, OEMs, and municipal consultants who demand precision, not promises.

View Products Request Spec Sheet
Retrofit-Friendly Drop-in compatible
EPC Support Full project lifecycle
12+ Years Field-proven expertise

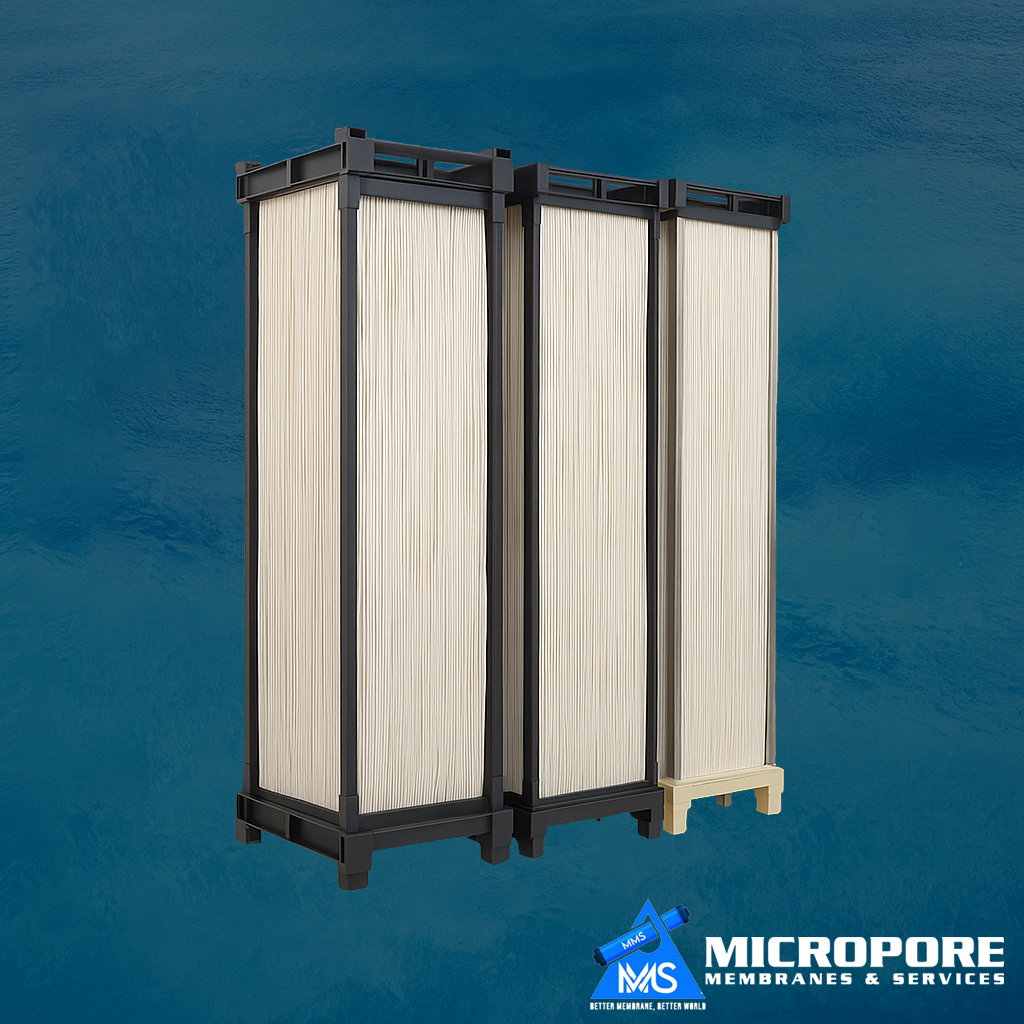

Micropore HF-R hollow fiber MBR membrane module
HF-R Hollow Fiber Module Micropore Membranes & Services
PVDF · 0.04 μm
40 LMH
Peak Flux
0.04 μm
Pore Size
>120 N
Tensile
2–13
pH Range
WHO WE ARE

Precision Engineered.
Globally Minded.

Micropore Membranes & Services is a specialized MBR membrane manufacturer delivering engineering-grade filtration solutions with technical transparency and measurable performance guarantees.

Founded on over a decade of membrane engineering expertise, Micropore was built with a singular mission: to manufacture MBR membranes that meet — and exceed — the performance standards expected by Western EPC contractors and OEMs, at a cost that makes projects more competitive. Every decision in our manufacturing process is driven by engineering precision, rigorous in-house validation, and an uncompromising commitment to delivering consistent, documented quality from our facility in India to water treatment plants worldwide.

Dedicated R&D Lab

In-house research with advanced bubble-point, flux, and tensile strength testing equipment for every production batch.

Custom Engineering

OEM-ready membranes with configurable module dimensions, fiber counts, and housing specifications.

Global Supply Chain

Reliable international logistics with experienced export documentation for North America, Europe, and the Middle East.

Technical Support

Dedicated engineering support from pre-sales sizing to commissioning and ongoing membrane replacement programs.

Headquartered in India. Operating with a Global Outlook.

Manufacturing in India enables Micropore to deliver technically superior MBR membranes at a significantly lower cost basis — without compromising on engineering standards, quality control, or customer support.

🇮🇳 India — HQ & Manufacturing 🇺🇸 USA — Sales & Support 🇪🇺 Europe — Distribution
WHERE WE OPERATE

Where Our Membranes Work

Engineered for the world's most demanding wastewater treatment environments — from municipal plants to high-purity industrial processes.

Municipal Wastewater

High-volume MBR installations for city and regional wastewater treatment plants requiring consistent effluent quality.

→ Effluent Reuse Ready
Food & Beverage

Hygienic membrane filtration for high-BOD food processing effluent with compliance-grade output quality.

→ Hygienic Recovery
Pharmaceutical

Ultra-fine filtration for API and formulation plant effluent — critical for environmental compliance and ZLD targets.

→ ZLD Compatible
Hospitality & Commercial

Compact MBR systems for hotels, resorts, and commercial complexes with on-site greywater recycling capability.

→ Space-Efficient Design
Industrial Effluent

Robust membranes handling variable influent quality from textiles, tanneries, chemical, and manufacturing sectors.

→ High MLSS Tolerance
Water Reclamation

Tertiary treatment and advanced reclamation for agriculture, cooling towers, and industrial process water reuse.

→ Reuse Grade Output
Water Reclamation

Tertiary treatment and advanced reclamation for agriculture, cooling towers, and industrial process water reuse.

→ Reuse Grade Output
Water Reclamation

Tertiary treatment and advanced reclamation for agriculture, cooling towers, and industrial process water reuse.

→ Reuse Grade Output
TECHNICAL DASHBOARD · PERFORMANCE OVERVIEW

Engineered for Reliability

Every membrane leaves our facility only after passing a rigorous multi-parameter internal validation protocol. These are real numbers — not marketing estimates.

HF-R Series FS-R Series Verified Q4-2024
Peak Flux Rate
40 LMH
Liters per m² per hour at standard test conditions
Nominal Pore Size
0.04 μm
Absolute micro-filtration — virus-grade barrier
MLSS Tolerance
12K mg/L
Mixed Liquor Suspended Solids capacity
Operating Temp.
5–45 °C
Broad thermal operating window
pH Resistance
2–13 pH
Full chemical clean compatibility
Tensile Strength
>120 N
Per fiber — break-resistance certified
WHY CHOOSE MICROPORE

Technical Advantages

Hydrophilic PVDF Membrane

Modified PVDF chemistry provides inherent hydrophilicity — reducing fouling tendency and extending cleaning intervals.

Chemical Resistance by Design

Withstands NaOCl, citric acid, and NaOH cleaning protocols across pH 2–13 without membrane degradation.

Retrofit-Ready Architecture

Cassette and module dimensions engineered to be interchangeable with major OEM formats — reducing replacement CAPEX.

Sustained Flux Performance

Internally validated long-term flux curves demonstrating less than 15% decline after 1,000-hour continuous operation.

COMMERCIAL ADVANTAGES

Business Value

30–40% Cost Advantage

Indian manufacturing base delivers equivalent performance at materially lower cost — ideal for competitive EPC bids.

Fast Lead Times

Standard module orders fulfilled in 4–6 weeks. Emergency replacement stock programs available for long-term partners.

OEM White-Label Available

Full white-label and private-label manufacturing for OEMs and system integrators with custom branding and documentation.

Lifecycle Technical Support

Engineering support from pre-sales flux design to on-site commissioning assistance and membrane replacement consultation.

PRODUCT PORTFOLIO

Choose Your Membrane Series

Two proven membrane configurations, each optimized for different system architectures and application profiles.

Hollow Fiber HF-R Flat Sheet FS-R
HOLLOW FIBER SERIES

MBR HF-R

Outside-In Flow Submerged Module
Parameter Specification Test Standard Notes
Membrane Material PVDF (Hydrophilic) — Modified surface chemistry
Nominal Pore Size 0.04 μm ASTM F316 Absolute filtration rating
Fiber OD / ID 1.3 mm / 0.8 mm Internal ±0.05 mm tolerance
Peak Flux Rate 40 LMH Internal TMP Test At -0.025 MPa TMP
Sustained Flux 15–25 LMH Internal Typical design flux
Max. TMP -0.04 MPa ASTM Do not exceed in operation
MLSS Tolerance Up to 12,000 mg/L Internal Verified bioreactor trials
Operating Temp. 5 – 45 °C Internal Optimal 15–35 °C
pH Range 2 – 13 Internal Soak Test Continuous CIP compatible
Tensile Strength > 120 N/fiber ISO 6259 Batch-tested, lot release
Module Eff. Area 10 / 25 / 50 m² — Standard cassette sizes
Chlorine Tolerance 200,000 ppm·hr Internal Cumulative NaOCl exposure
All values from internal validated testing — batch certificates available on request. Download Datasheet
FLAT SHEET SERIES

MBR FS-R

Plate & Frame High Solids
Parameter Specification Test Standard Notes
Membrane Material PVDF (Hydrophilic) — Reinforced backing substrate
Nominal Pore Size 0.08 μm ASTM F316 MF-grade flat sheet
Membrane Thickness 1.0 mm Internal Including support layer
Nominal Flux 10–30 LMH Internal TMP Test At -0.02 MPa TMP
Panel Dimensions 495 × 1000 mm — Custom sizes available
Effective Area/Panel 0.93 m² — Gross area
Max. TMP -0.04 MPa Internal Bi-directional backwash
MLSS Tolerance Up to 18,000 mg/L Internal Suitable for high-solids aerobic digestion
Operating Temp. 5 – 45 °C Internal —
pH Range 1 – 13 Internal Soak Test Extended chemical resistance
Burst Pressure > 0.3 MPa Internal Hydrostatic burst test
Chlorine Tolerance 250,000 ppm·hr Internal NaOCl CIP validated
All values from internal validated testing — batch certificates available on request. Download Datasheet
INTERNAL QUALITY CONTROL

Verified Internal Testing

Without relying on third-party certifications, Micropore has built a rigorous internal QC infrastructure. Every membrane batch goes through four mandatory validation gates before leaving the facility.

Quality Protocol Status
100% Batch Coverage
Every production lot tested. No sampling shortcuts. Lot release certificates issued for all shipments.
01

Bubble Point Test

Every membrane module undergoes bubble point integrity testing to verify maximum pore size and detect any defects or pinholes before assembly. No module is passed without a confirmed bubble point reading above the minimum threshold.

Verified Internal Testing
02

Flux Performance Testing

Controlled clean-water flux testing at defined TMP values is performed on representative fibers from each production batch. Flux curves are plotted and compared against internal acceptance benchmarks before lot release.

Verified Internal Testing
03

Tensile Strength Testing

Mechanical integrity is validated through fiber-pull tensile tests on sampled fibers per batch. Minimum break force must exceed 120 N per fiber. Sub-standard batches are quarantined and reprocessed — not shipped.

Verified Internal Testing
04

Chemical Validation

Membrane coupons are subjected to accelerated chemical soak tests in NaOCl, citric acid, and caustic solutions at operational concentrations. Pre- and post-soak flux retention must meet minimum acceptance criteria for each chemical class.

Verified Internal Testing
Micropore quality testing lab — bubble point apparatus
Bubble Point Lab · Micropore Facility
MBR membrane module production — hollow fiber manufacturing
Hollow Fiber Production Line
Tensile strength and chemical validation testing
Flux & Tensile Validation Testing
12+
Years Manufacturing
100%
Batch Testing Coverage
4
Mandatory QC Gates
500+
Modules Delivered
30+
Countries Exported
FOR EPC · OEM · CONSULTANTS

Built for Professional
Project Delivery

Micropore understands that your reputation is on the line with every project. We operate as a long-term technical partner — not just a supplier. Our team engages at every phase of the project lifecycle.

  • Pre-Sales Engineering Support — Flux design, module sizing, and system layout consultation at no cost.
  • Competitive Bid Documentation — Full technical datasheets, test reports, and drawings formatted for RFQ submissions.
  • Flexible MOQ — Trial quantities available for pilot projects with no minimum-order penalty on first procurement.
  • Commissioning Support — Remote and on-site commissioning guidance from our membrane engineering team.
  • Long-Term Supply Agreements — Blanket PO and frame agreements with locked pricing for multi-year replacement programs.
Start a Partnership Discussion
Partnership Models Available
01
OEM Supply Partner

White-label or branded membrane supply integrated into your MBR system product line. Custom module dimensions and documentation available.

02
EPC Project Supply

Project-specific supply with engineered module packages, complete documentation, and delivery schedule aligned to construction milestones.

03
Aftermarket Replacement Program

Retrofit-compatible replacement membranes for existing MBR installations — reducing OPEX for facility operators and end clients.

04
Distributor / Reseller Agreement

Regional exclusivity arrangements for qualified distributors in North America, Europe, GCC, and Southeast Asia.

05
Consulting & Technical Specification

Engage our technical team to spec Micropore membranes into municipal and industrial project BOQs at the design stage.

ENVIRONMENTAL COMMITMENT

Cleaner Water.
Lower Footprint.
Lasting Impact.

MBR technology is inherently sustainable. At Micropore, we design every membrane and every process step to maximize environmental benefit — from the energy consumed in your plant to the materials we use in production.

Low-Energy Operation PVDF Recyclable High-Volume Reuse
Reduced Energy Use

Low-pressure submerged operation minimizes blower and pump power demand — reducing both operational costs and the carbon footprint of every cubic metre treated.

Extended Membrane Lifespan

Durable PVDF hollow fibers and flat sheets are engineered for long service intervals, directly reducing membrane replacement waste sent to landfill.

Water Reuse Empowered

MBR effluent quality enables safe, high-volume reuse for irrigation, industrial cooling, and process water — reducing freshwater abstraction for communities and industries.

Eco-Conscious Manufacturing

Built using recyclable PVDF materials with a production process designed to minimise solvent usage, water waste, and energy consumption at our manufacturing facility.
